- WORKSWELL THERMAL MODULE

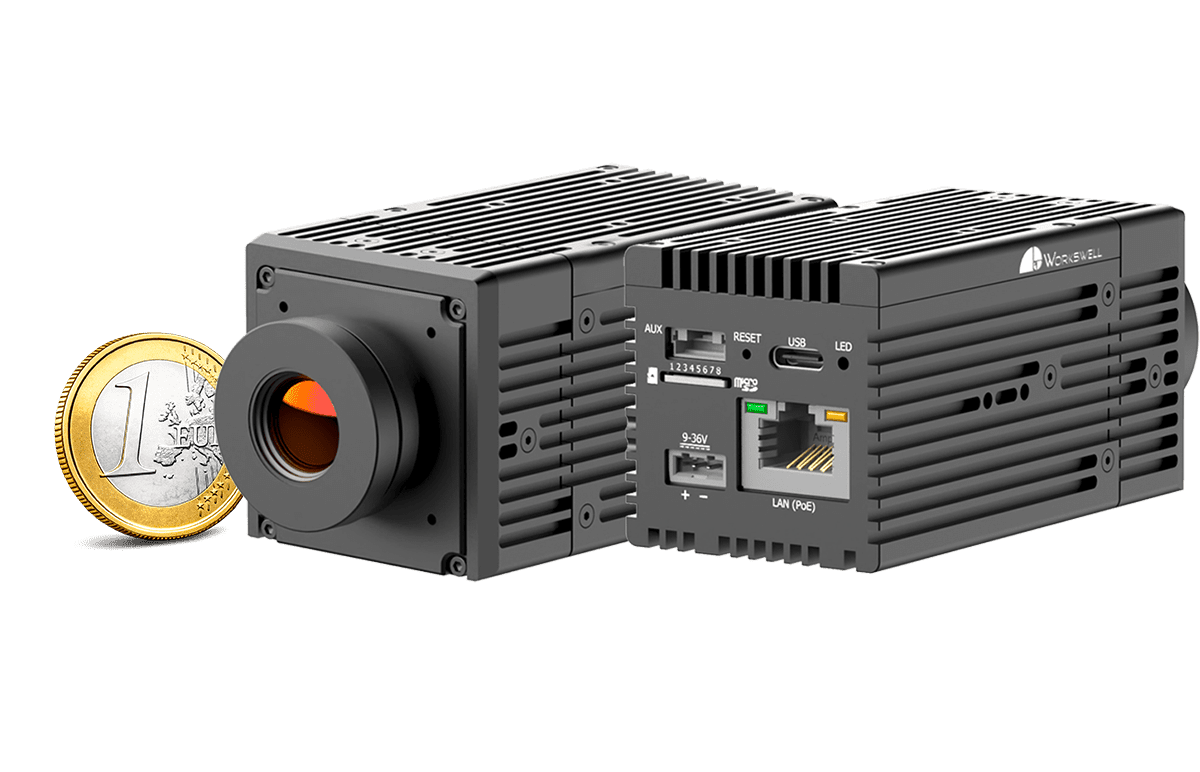

WEOM® Smart Ethernet thermal camera module

THERMAL IMAGING CAMERA MODULE

WEOM® Smart Ethernet is a compact, high-performance thermal imaging core designed for seamless integration into a wide range of applications – from professional security systems to autonomous technologies and industrial automation. This fully functional, ITAR-free module is developed in Europe with a strong focus on reliability, flexibility, and easy deployment. Thanks to its versatility, it is ideal for UAV/UGV platforms, mobile and fixed thermal cameras, intelligent traffic systems, machine vision, and specialized defense applications.

The module uses an uncooled microbolometer with a resolution of 640 × 480 px, a 17 μm pixel pitch, and thermal sensitivity of <30 mK, delivering highly detailed imaging even in minimal temperature differences. The resulting image is sharp, high-contrast, and clearly visible under all conditions. WEOM® Smart Ethernet is also equipped with a wide range of interfaces including Ethernet (with PoE support), RS485 for PTZ control, digital I/Os, and full ONVIF compatibility, allowing for quick integration into any modern system without the need for additional development or customization.

More information
UNLOCK HIDDEN BENEFITS – PDF
parallax background

Thanks to its open architecture and support for standard interfaces, WEOM® Smart Ethernet enables effortless deployment into existing infrastructures without requiring the development of proprietary software. This makes it a perfect choice for projects with tight timelines or limited budgets, where speed, simplicity, and reliability are key. The built-in web interface provides direct access to all functionalities – from live streaming over the network to detailed configuration of parameters and security settings.

The flexibility of lens selection, high thermal sensitivity, advanced image processing features, and rugged construction give system integrators full freedom to tailor the solution to project-specific needs. The module is engineered to perform reliably even in demanding environments and is well-suited for a broad spectrum of use cases – from industrial and infrastructure applications to mobile platforms and intelligent surveillance systems.

Sensor Sensitivity

<30 mK or <50 mK

Sensor Resolution

640 x 480 px

Frame Rate

60 Hz, 30 Hz or 9 Hz

Video interfaces

ONVIF, PELCO-D, RTSP

Lens options

7.5 – 73.1 mm

FOV 8° – 91°

Spectral Band

8 – 14 μm

Unlock the Power of Precision

With WEOM® thermal camera core

High Image Quality

WEOM® thermal cores are equipped with advanced FPGA image processing technology, delivering exceptional image quality and scene visualization. With high sensitivity of 30mK and a sensor resolution of 640 x 480 pixels, WEOM® ensures accurate detection and visualization of even the smallest temperature differences. This high level of sensitivity and resolution makes WEOM® cores suitable for a wide range of applications, from industrial inspections to security and surveillance.

Integration Flexibility

One of the standout features of the WEOM® thermal core is its flexibility in integration. The core's compact size and lightweight design, combined with various standard industrial interchangeable interfaces such as HDMI, CVBS, USB3, and GigE, allow it to be easily incorporated into numerous systems. Whether it's for unmanned aerial or ground vehicles (UAV/UGV), thermal monoculars/binoculars, handheld cameras, or fixed industrial and security cameras, WEOM® can be seamlessly integrated to meet specific application needs.

Wide Range of Applications

WEOM® thermal cores are designed to meet the demands of various challenging applications. They are well-suited for use in maritime cameras, machine vision systems, monitoring, and intelligent systems. The robust construction and high performance of WEOM® cores ensure reliable operation even in extreme conditions. This versatility makes WEOM® an ideal choice for industries that require dependable and precise thermal imaging solutions.

Fast Start-up and Easy Control

Efficiency and ease of use are critical in many applications, and WEOM® thermal cores deliver on both fronts. The cores boast a rapid start-up time of less than 5 seconds, enabling users to begin their work quickly. Additionally, WEOM® cores offer user-friendly control through the Thermal Core GUI software, which also supports remote firmware updates. This functionality ensures that the cores can be easily managed and updated, enhancing overall operational efficiency.

Durability and Reliability

Durability is a key consideration for thermal cores used in demanding environments. WEOM® cores are built with a durable aluminum body and feature IP67 protection, making them highly resistant to dust and water. They can operate in a wide temperature range from -40°C to +80°C, ensuring reliable performance in harsh conditions. This robustness, combined with compliance with standards such as ROHS, REACH, WEEE, and CE, underscores the reliability and long-term value of WEOM® thermal cores.

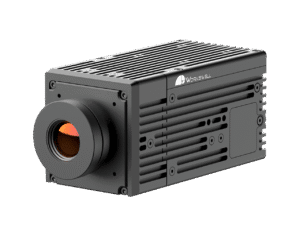

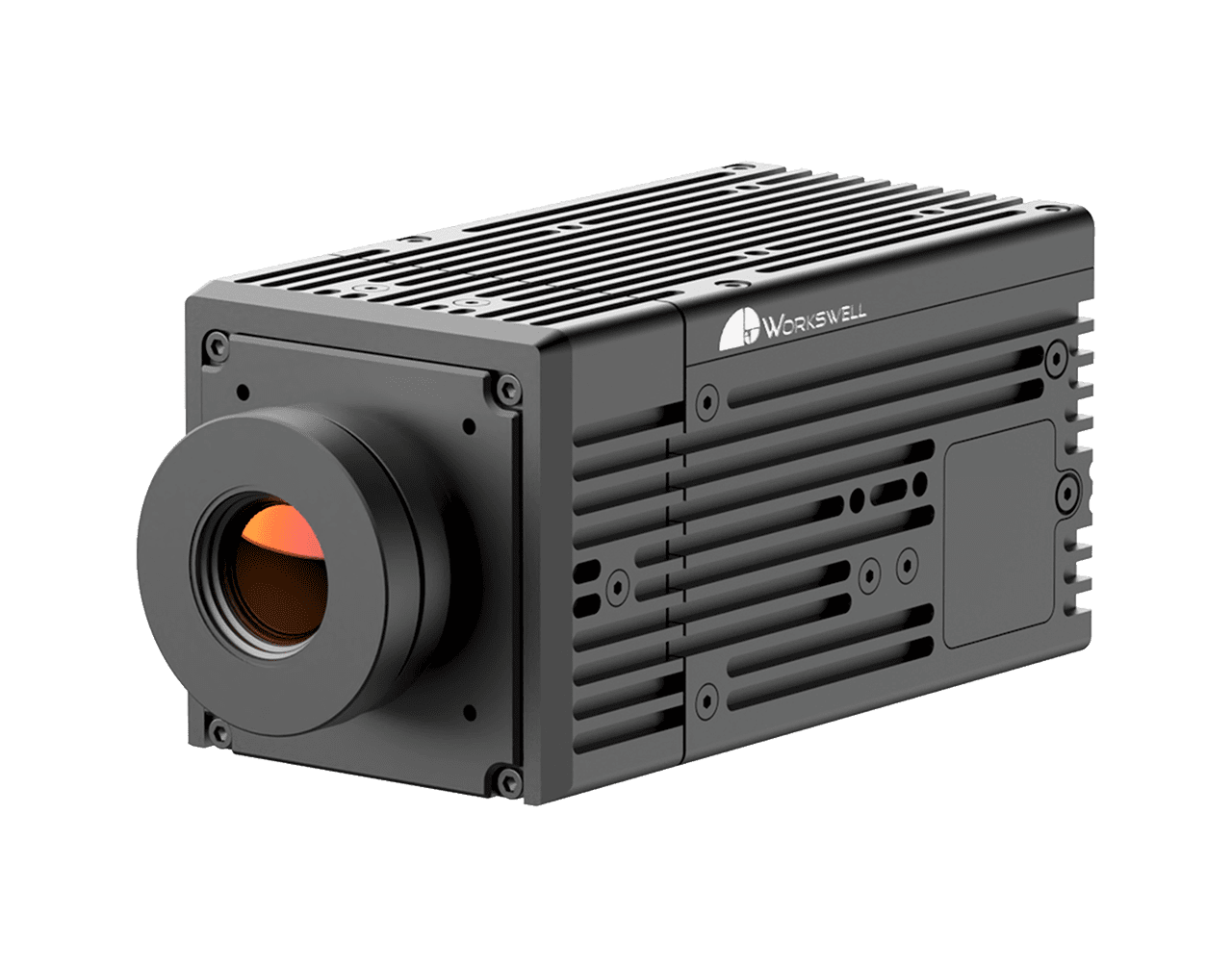

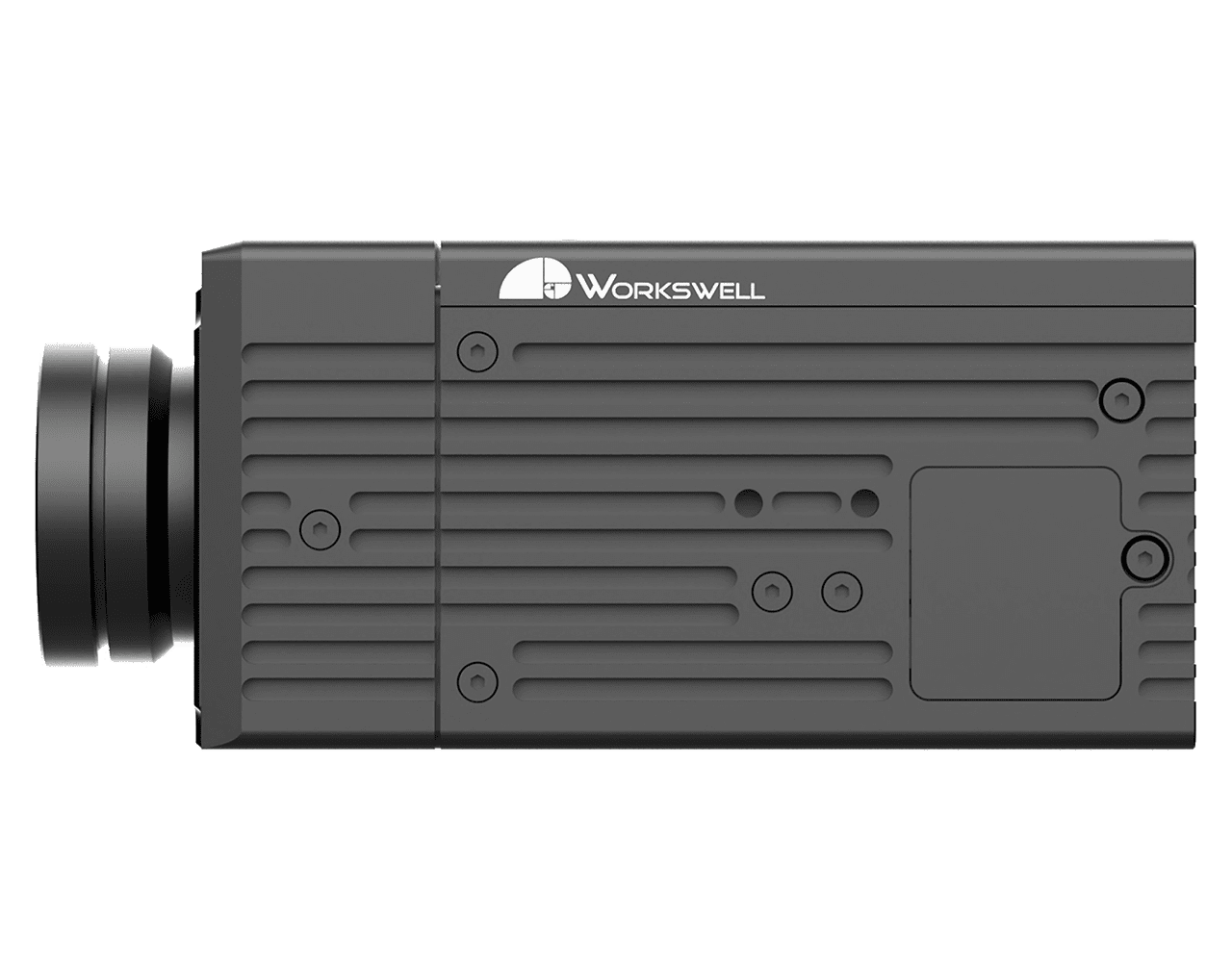

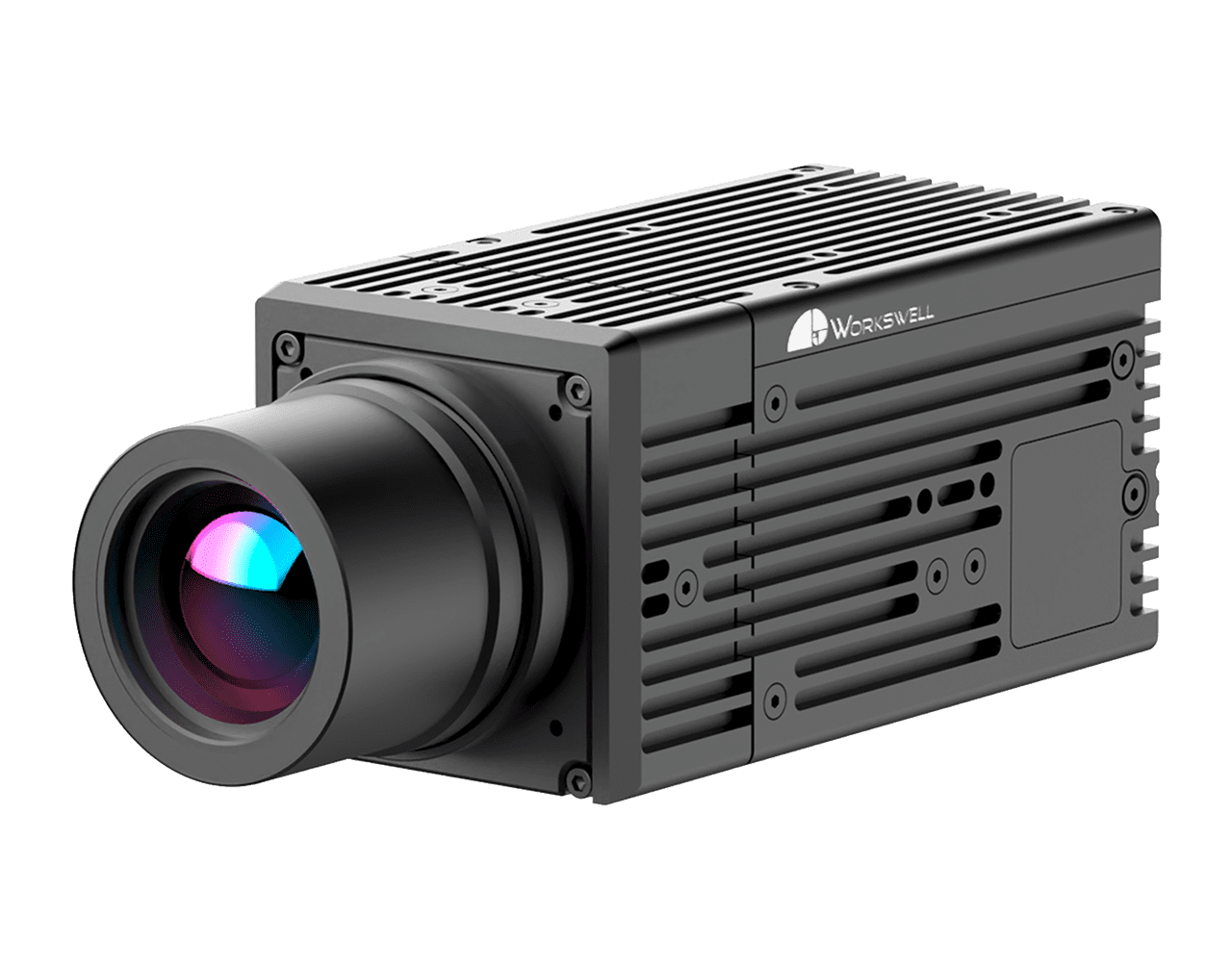

Product photos

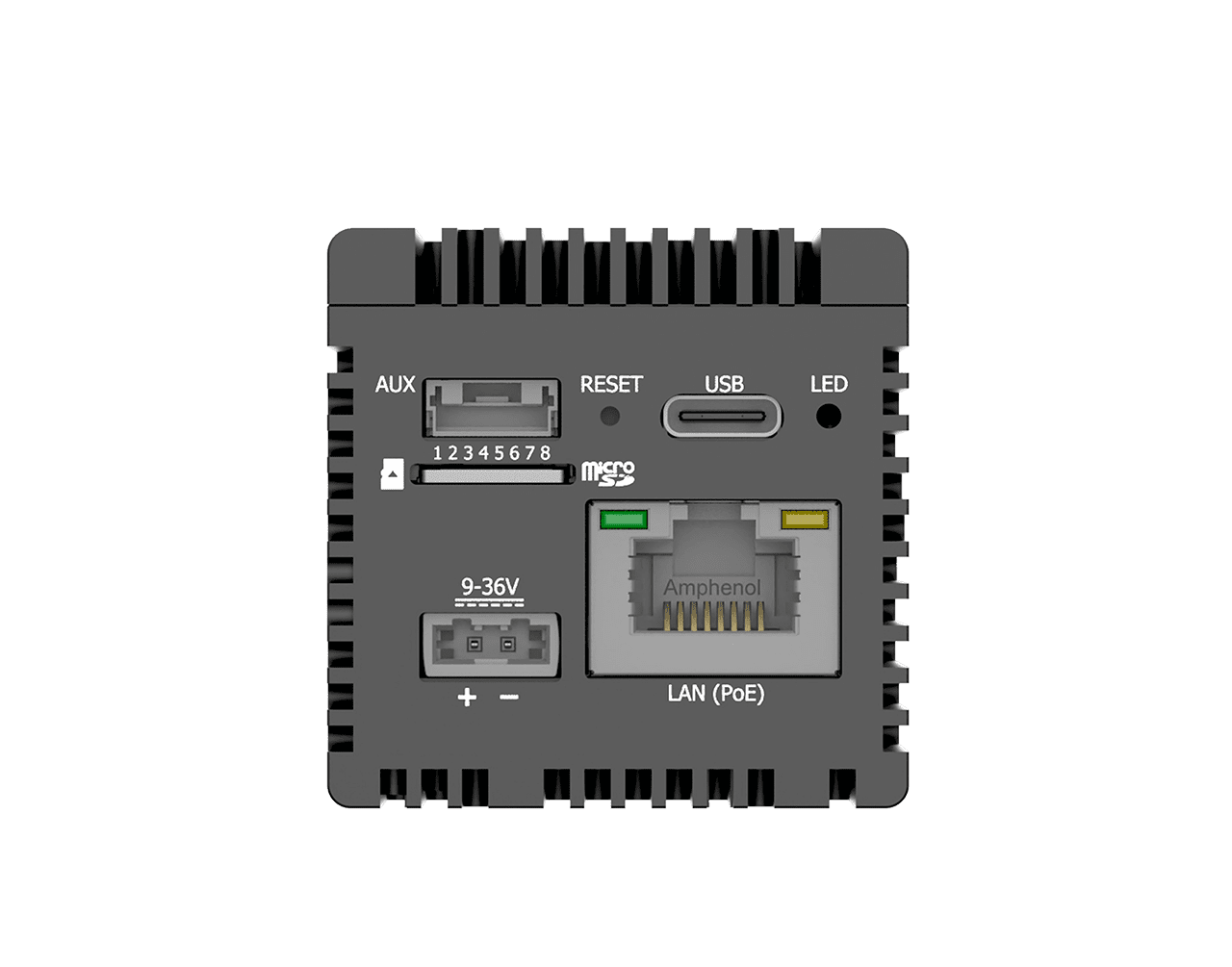

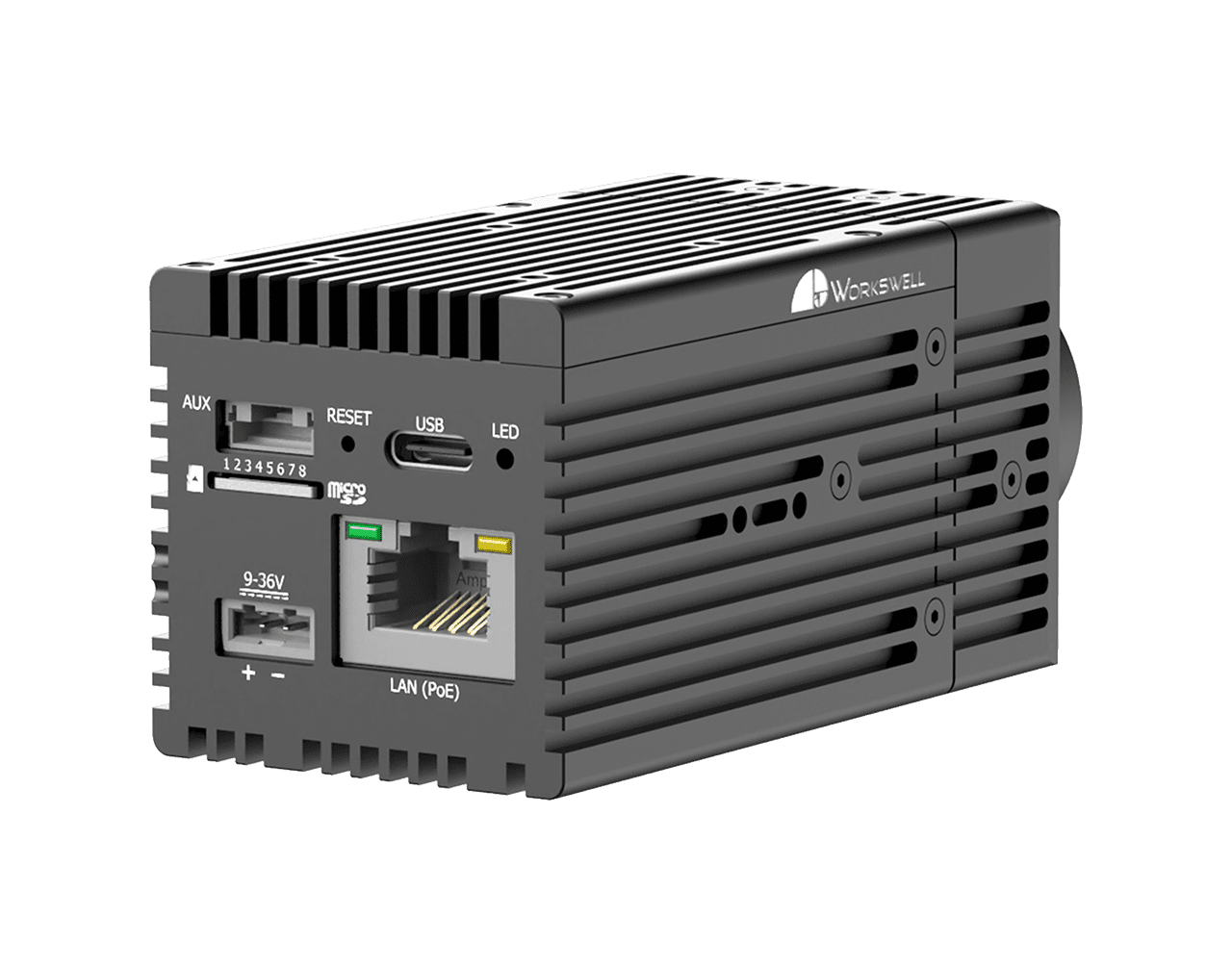

Connectivity

& interfaces

USB C

Ethernet ONVIF/RTSP

RS 485

2-pin Power Input

AUX Connector

Compatible

Applications

WEOM® thermal cores find extensive use in various industries due to their flexibility, high image quality, and robustness. WEOM® provides reliable and accurate thermal imaging essential for effective detection and analysis of temperature differences. With their durability and capability to operate in demanding conditions, WEOM® cores are an ideal solution for applications requiring reliable and precise temperature monitoring.

Untitled design (5)

Unmanned Aerial Vehicles (UAV/UGV)

The WEOM® thermal imaging core is ideal for use in unmanned aerial and ground vehicles (UAV/UGV). With its high sensitivity of 30mK and 640 x 480 px resolution, it provides excellent image quality, which is crucial for target identification and navigation in challenging environments. Advanced FPGA processing ensures reliability and quick response, essential for real-time operations. Due to its compact size and lightweight design, integrating WEOM® into various types of unmanned systems is effortless.
4

Maritime Applications

WEOM® thermal cameras are well-suited for installation on ships and other maritime vessels. They assist with navigation at night and in poor weather conditions, ensuring the safety of the crew and the vessel. They can be used to detect obstacles, other vessels, or to monitor illegal activities. With IP67 protection and a wide operating temperature range, these cameras are resistant to the harsh conditions at sea.
5

Monoculars and Binoculars

WEOM® thermal cameras can be integrated into portable thermal monoculars and binoculars. These devices allow users to see in complete darkness, smoke, or fog. This is especially useful for military applications, hunting, rescue operations, and outdoor activities. Users will appreciate the high resolution and sensitivity of the camera, which provides detailed and sharp images.
2

Security and Search Operations

The WEOM® thermal imaging core is an excellent tool for security, search and rescue operations in various situations, including natural disasters, lost hikers, or accidents. Its high sensitivity and resolution allow for the rapid and accurate detection of heat emitted by the human body, which is crucial during nighttime operations or in poor lighting conditions. Advanced image processing and the option to use different lenses enable capturing wide or narrow fields of view according to the mission's needs. WEOM® is also lightweight and compact, making it easy to integrate into portable devices or drones that can quickly scan large areas, increasing the chances of a successful rescue.
Untitled design (7)

Observation and Monitoring Application

For observation and monitoring applications, the WEOM® thermal imaging core offers significant advantages. This core provides excellent image quality and sensitivity, making it ideal for security cameras and monitoring systems. With its high resolution (640x480 px) and 30mK sensitivity, it can capture even the smallest thermal differences. Its compact size and lightweight design facilitate easy installation, while the various interchangeable lenses and interfaces (HDMI, USB3, GigE) allow for flexible use in different environments. This means you can seamlessly integrate WEOM® into existing systems, enhancing your ability to detect and respond to potential threats or anomalies in real time.

WEOM with 7.5 mm lens

WEOM with 14 mm lens

WEOM with 25 mm lens

WEOM with 35 mm lens

WEOM with 50 mm lens

WEOM all lens options in action

Case studies

Configuration

Thermal Camera Core WEOM® configuration optimizes image quality and performance for applications like unmanned vehicles and thermal sights. It features advanced image processing.

Desktop WEOM GUI configuration

The configuration tool WEOM GUI for the thermal imaging Core WEOM® provides setting of various parameters to optimise image quality and performance in every situation. It offers advanced image processing, enhancing details and contrast optimalization through different spatial and temporal image filters as well as settings of the frame rate, gain control and user dead pixel correction wizard.

Modular architecture. One unified control.

WEOM thermal cameras are built around a proven two-part concept: a high-performance thermal core and a pluggable interface.
The same core hardware is used across the lineup, while different plugins adapt the camera to your application. All advanced functions
are controlled through a unified interface and ready-to-use software tools.

Discover how the WEOM architecture works

One core, multiple interfaces

Identical thermal core hardware across
the product line, with plugins providing HDMI, CVBS, GigE, UVC or RTSP video output.

Unified control via TCSI

All advanced features are controlled through
a single serial interface, independent of the selected video plugin.

Easy integration

Start with WEOM GUI, or integrate directly using C++ / Python libraries or the SEP REST API
on embedded and desktop platforms.
