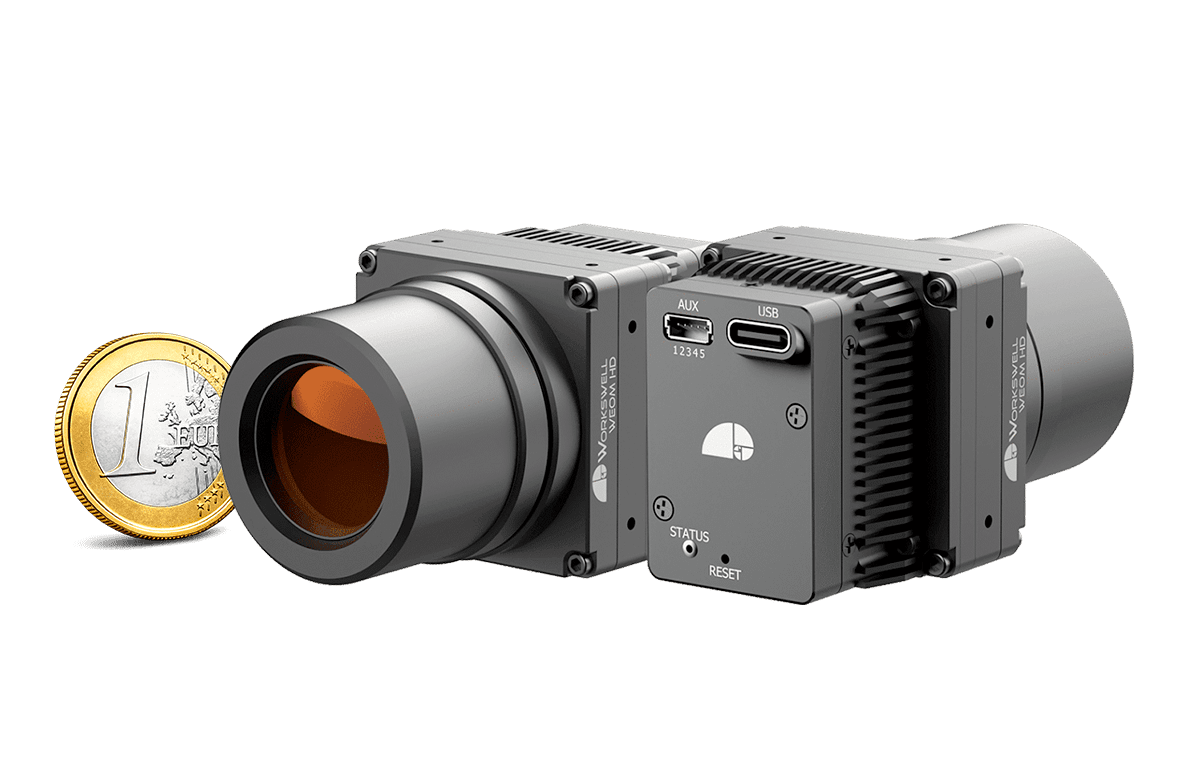

WEOM® HD thermal camera module

THERMAL IMAGING CAMERA MODULE

The WEOM® HD Thermal Core represents the next generation of thermal imaging technology, designed for the most demanding applications where image detail and reliability are critical. Equipped with advanced FPGA processing and a high-resolution uncooled LWIR detector (1280 × 1024 px), this module delivers exceptional image quality and sensitivity below 50 mK. It is the ideal choice for integrators who require uncompromising performance in UAV/UGV systems, handheld or fixed cameras or security solutions. Its compact dimensions, low weight, and minimal power consumption make the WEOM® HD the perfect foundation for a wide range of thermal applications.

A key advantage of the WEOM® HD Thermal Core is its exceptional adaptability. With real-time output via HDMI and simple connectivity through USB-C, it offers maximum flexibility for integration. A wide selection of fixed-focus lenses – or the option to receive the core without a lens – gives integrators complete freedom in system design. Combined with advanced image processing features, including automatic and manual gain control, spatial and temporal filtering, and multiple color palettes, the WEOM® HD ensures precise visualization under any conditions.

More information
parallax background

The WEOM® HD Thermal Core is designed and manufactured in Europe, ensuring ITAR-free usage, top-tier quality, and long-term reliability. Its robust aluminum housing with IP67 protection and an operational range from −32 °C to +70 °C make it suitable for even the harshest environments. Despite its high performance, the module remains lightweight (<85 g) and highly energy-efficient (2.9 W), making it an excellent choice for both mobile and stationary systems.

Beyond its hardware excellence, the WEOM® HD integrates intelligent features that make operation straightforward and efficient. With a fast start-up time of under 5 seconds, user-friendly control software, and seamless integration into existing platforms, this thermal core combines performance, versatility, and durability. The WEOM® HD is more than just a sensor – it is a dependable solution that empowers integrators to push the boundaries of thermal imaging technology.

Sensor Sensitivity

<50 mK

Sensor Resolution

1280 x 1024 px

Frame Rate

9 Hz or 30 Hz full frame rate

Compact Dimensions

43 x 42 x 51 mm or 1.69 x 1.65 x 2.0 in

Weight

< 85 grams without the lens

Spectral Band

8 – 14 μm

Unlock the Power of Precision

With WEOM HD thermal camera core

High Image Quality

WEOM® HD thermal cores are equipped with advanced FPGA image processing technology, delivering exceptional image quality and scene visualization. With high sensitivity of 50mK and a sensor resolution of 1280 x 1024 pixels, WEOM® HD ensures accurate detection and visualization of even the smallest temperature differences. This high level of sensitivity and resolution makes WEOM® HD cores suitable for a wide range of applications, from industrial inspections to security and surveillance.

Integration Flexibility

One of the standout features of the WEOM® HD thermal core is its flexibility in integration. The core's compact size and lightweight design, combined with various standard industrial interchangeable interfaces such as HDMI and USB3, allow it to be easily incorporated into numerous systems. Whether it's for unmanned aerial or ground vehicles (UAV/UGV), thermal monoculars/binoculars, handheld cameras, or fixed industrial and security cameras, WEOM® HD can be seamlessly integrated to meet specific application needs.

Wide Range of Applications

WEOM® HD thermal cores are designed to meet the demands of various challenging applications. They are well-suited for use in maritime cameras, machine vision systems, monitoring, and intelligent systems. The robust construction and high performance of WEOM® HD cores ensure reliable operation even in extreme conditions. This versatility makes WEOM® HD an ideal choice for industries that require dependable and precise thermal imaging solutions.

Fast Start-up and Easy Control

Efficiency and ease of use are critical in many applications, and WEOM® HD thermal cores deliver on both fronts. The cores boast a rapid start-up time of less than 5 seconds, enabling users to begin their work quickly. Additionally, WEOM® HD cores offer user-friendly control through the Thermal Core GUI software, which also supports remote firmware updates. This functionality ensures that the cores can be easily managed and updated, enhancing overall operational efficiency.

Product photos

Connectivity

& interfaces

USB-C

HDMI

Ethernet (PoE)

JST

Compatible

Applications

WEOM® HD thermal cores find extensive use in various industries due to their flexibility, high image quality, and robustness. Core WEOM® HD provides reliable and accurate thermal imaging essential for effective detection and analysis of temperature differences. With their durability and capability to operate in demanding conditions, WEOM® HD cores are an ideal solution for applications requiring reliable and precise temperature monitoring.

Untitled design (5)

Unmanned Aerial Vehicles (UAV/UGV)

The WEOM® HD thermal imaging core is ideal for use in unmanned aerial and ground vehicles (UAV/UGV). With its high sensitivity of <50 mK and 1280 × 1024 px resolution, it provides excellent image quality, which is crucial for target identification and navigation in challenging environments. Advanced FPGA processing ensures reliability and quick response, essential for real-time operations. Due to its compact size and lightweight design, integrating WEOM® HD into various types of unmanned systems is effortless.
4

Maritime Applications

WEOM® HD thermal cameras are well-suited for installation on ships and other maritime vessels. They assist with navigation at night and in poor weather conditions, ensuring the safety of the crew and the vessel. They can be used to detect obstacles, other vessels, or to monitor illegal activities. With IP67 protection and a wide operating temperature range, these cameras are resistant to the harsh conditions at sea.
5

Monoculars and Binoculars

WEOM® HD thermal cameras can be integrated into portable thermal monoculars and binoculars. These devices allow users to see in complete darkness, smoke, or fog. This is especially useful for military applications, hunting, rescue operations, and outdoor activities. Users will appreciate the high resolution and sensitivity of the camera, which provides detailed and sharp images.
2

Security and Search Operations

The WEOM® HD thermal imaging core is an excellent tool for security, search and rescue operations in various situations, including natural disasters, lost hikers, or accidents. Its high sensitivity and resolution allow for the rapid and accurate detection of heat emitted by the human body, which is crucial during nighttime operations or in poor lighting conditions. Advanced image processing and the option to use different lenses enable capturing wide or narrow fields of view according to the mission’s needs. WEOM® HD is also lightweight and compact, making it easy to integrate into portable devices or drones that can quickly scan large areas, increasing the chances of a successful rescue.
Untitled design (7)

Observation and Monitoring Application

For observation and monitoring applications, the WEOM® HD thermal imaging core offers significant advantages. This core provides excellent image quality and sensitivity, making it ideal for security cameras and monitoring systems. With its 1280 × 1024 px resolution and sensitivity of <50 mK, it can capture even the smallest thermal differences. Its compact size and lightweight design facilitate easy installation, while the various interchangeable lenses and interfaces (HDMI, USB, Ethernet/PoE) allow for flexible use in different environments. This means you can seamlessly integrate WEOM® HD into existing systems, enhancing your ability to detect and respond to potential threats or anomalies in real time.

Case studies

Configuration

Thermal Camera Core WEOM® configuration optimizes image quality and performance for applications like unmanned vehicles and thermal sights. It features advanced image processing.

Desktop WEOM GUI configuration

The configuration tool WEOM GUI for the thermal imaging Core WEOM® provides setting of various parameters to optimise image quality and performance in every situation. It offers advanced image processing, enhancing details and contrast optimalization through different spatial and temporal image filters as well as settings of the frame rate, gain control and user dead pixel correction wizard.

Explore Key Insights: Studies and Articles

Dive into the essence of innovation with our curated selection of studies and articles on our products. This compilation offers a glimpse into the advanced features, real-world applications, and expert insights surrounding our solutions. Ideal for professionals, researchers, and technology enthusiasts, it provides a concise overview of how our products are making a difference across industries. Engage with concise analyses and discover the impact and potential of our technologies, all in one place. Whether you're familiar with our offerings or exploring them for the first time, this collection is designed to inform, inspire, and intrigue.

For engineers and technicians

Related documents

Datasheet

EN, 462 KB, v250917
